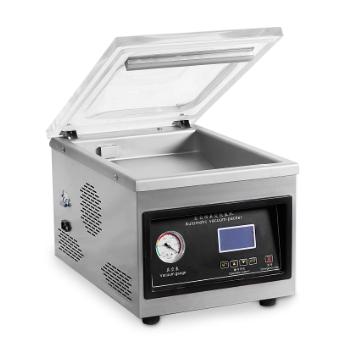

DZ-260/PD臺式液晶版真空包裝機
包裝機
2019.06.29
| DZ-260/PD臺式液晶版真空包裝機 | |
| DZ-260/PD LCD VERSION OF VACUUM PACKAGING MACHINE | |
| 電源電壓(v/Hz)voltage | AC220/50 |
| 真空泵電機功率(W)Motor Power | 370 |
| 熱封功率(W)Sealing Power | 200 |
| 真空室最低絕對壓強(Kpa)Ultimate Vacuum Pressure | 1 |
| 每室熱封條數(pcs)No.of Sealing Bars for Each Chamber | 1 |
| 真空室內尺寸(LxWxH)(mm)Chamber Dimension | 390*285*50 |
| 熱封條長度Sealing Length | 260 |
| 熱封寬度Sealing Width | 10 |
| 真空泵排氣量(m3/h)Vacuum Pump Rate | 6.5 |
| 真空室材質Material for Vacuum Chamber | 不銹鋼Stainless steel 304 |
| 外形尺寸（LxWxH)(mm)Dimension | 500*340*360 |
| 凈重Net Weight | 29 |
| 封口條到工作室之間的距離Distance from sealing bar to chamber side | 340 |
產品介紹
| DZ-260/PD臺式液晶版真空包裝機 | |
| DZ-260/PD LCD VERSION OF VACUUM PACKAGING MACHINE | |
| 電源電壓(v/Hz)voltage | AC220/50 |
| 真空泵電機功率(W)Motor Power | 370 |
| 熱封功率(W)Sealing Power | 200 |
| 真空室最低絕對壓強(Kpa)Ultimate Vacuum Pressure | 1 |
| 每室熱封條數(pcs)No.of Sealing Bars for Each Chamber | 1 |
| 真空室內尺寸(LxWxH)(mm)Chamber Dimension | 390*285*50 |
| 熱封條長度Sealing Length | 260 |
| 熱封寬度Sealing Width | 10 |
| 真空泵排氣量(m3/h)Vacuum Pump Rate | 6.5 |
| 真空室材質Material for Vacuum Chamber | 不銹鋼Stainless steel 304 |
| 外形尺寸（LxWxH)(mm)Dimension | 500*340*360 |
| 凈重Net Weight | 29 |
| 封口條到工作室之間的距離Distance from sealing bar to chamber side | 340 |
